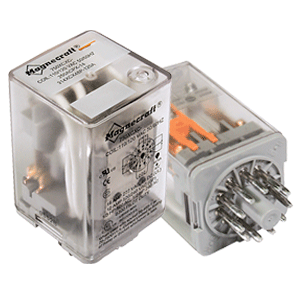

750XCXC-48D by Magnecraft

750XCXC-48D Specifications

View 750XCXC-48D Datasheet 750XCXC-48D Data Sheet


Terminal Style	Octal
Contact Configuration	3PDT
Thermal (Carrying) Current	12 A
Coil Resistance	1800 Ω
Coil Voltage	48 VDC
Load Type	Standard
Maximum Switching Voltage	300 V
Operating Range - % of Nominal (AC)	85 to 110 %
Drop-out Voltage Threshold (AC)	15 %
Drop-out Voltage Threshold (DC)	10 %
Operating Time (Response Time)	20 ms

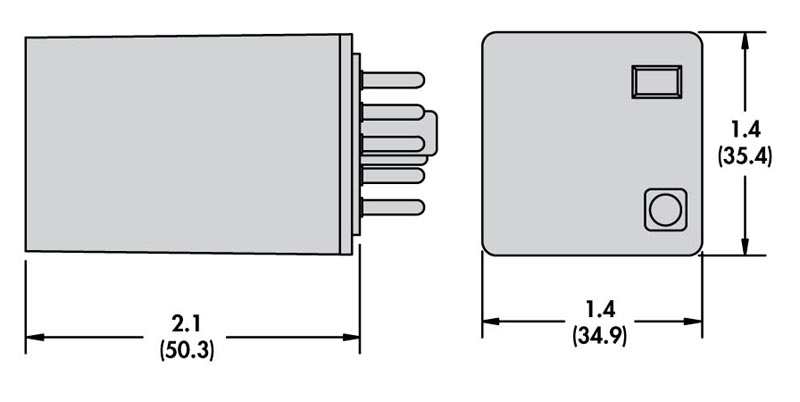

Case Code	750Xf
Contact Material	Silver Alloy

Terminal Style

Octal

Contact Configuration

3PDT

Thermal (Carrying) Current

12 A

Coil Resistance

1800 Ω

Coil Voltage

48 VDC

Load Type

Standard

Maximum Switching Voltage

300 V

Operating Range - % of Nominal (AC)

85 to 110 %

Drop-out Voltage Threshold (AC)

15 %

Drop-out Voltage Threshold (DC)

10 %

Operating Time (Response Time)

20 ms

Case Code

750Xf

Contact Material

Silver Alloy
