Top / Capacitors / Ceramic / High Voltage / SPHT9201MB

Picture of SPHT9201MB

SPHT9201MB

High Energy Corp
Logo of High Energy Corp
If you are interested in pricing for larger quantities, please submit an RFQ.
Quantity:

SPHT9201MB Specifications

View SPHT9201MB Datasheet SPHT9201MB Data Sheet
Dielectric MaterialNP0
Capacitance200 pF
fL (MHz)0.376 MHz
fH (MHz)24.3 MHz
Smax (kVA)40 kVA
I max (Arms)35 Arms
Voltage DC13 kVdc
StylePower Disk
ClassClass 1
Capacitance Tolerance±20%
Case CodeSPHT9_B
DielectricCeramic

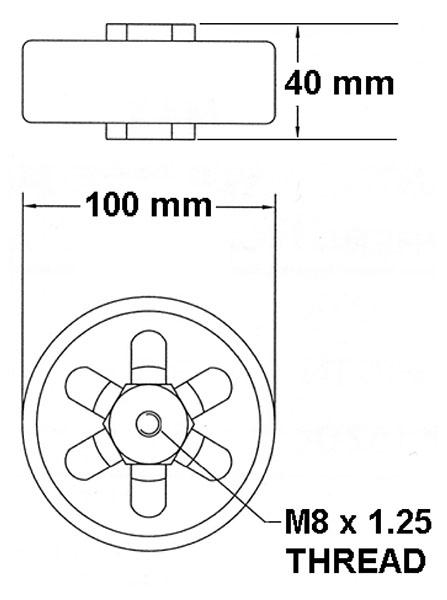

SPHT9201MB Case Dimensions

Height: 40.0000 mm
Diameter: 100.0000 mm
Picture of SPHT9201MB
