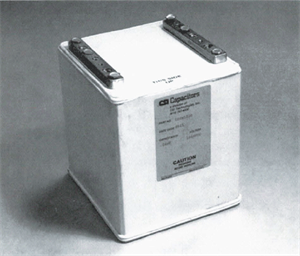

100W329 by CSI Capacitor

100W329 Specifications

View 100W329 Datasheet 100W329 Data Sheet


Capacitance	0.035 µF
Capacitance Tolerance	±10%
Voltage DC	100 kVdc
Dimension B	3.9 "
Style	Rectangular
Dimension C	7 "
Dimension A	8.4 "
Dielectric	Paper/Polyester Film
Case Code	P2
Operating Temperature	-35°C to 60°C
Terminal Style	Brass rails with tapped #10-32 holes

Capacitance

0.035 µF

Capacitance Tolerance

±10%

Voltage DC

100 kVdc

Dimension B

3.9 "

Style

Rectangular

Dimension C

7 "

Dimension A

8.4 "

Dielectric

Paper/Polyester Film

Case Code

Operating Temperature

-35°C to 60°C

Terminal Style

Brass rails with tapped #10-32 holes

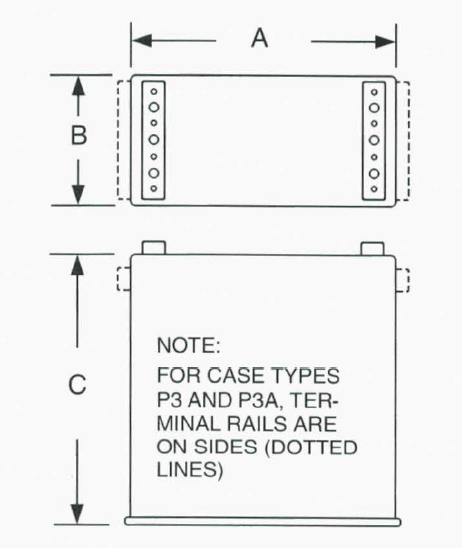

100W329 Case Dimensions

View Large Image

100W329 Description

The WPC series of plastic cased capacitors is designed for applications in lasers, impulse generators, research and pulse discharge. The units combine the proven paper/polyester film dielectric with a construction technique which provides all the benefits of a high KV per inch of height while maintaining an inductance of 20nH or less.
