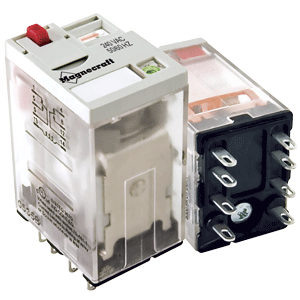

782XBX2M4L-24A by Magnecraft

782XBX2M4L-24A Specifications

View 782XBX2M4L-24A Datasheet 782XBX2M4L-24A Data Sheet


Terminal Style	Plug-in
Contact Configuration	DPDT
Thermal (Carrying) Current	10 A
Coil Resistance	180 Ω
Coil Voltage	24 VAC
Load Type	Standard
Maximum Switching Voltage	300 V
Operating Range - % of Nominal (AC)	85 to 110 %
Drop-out Voltage Threshold (AC)	15 %
Drop-out Voltage Threshold (DC)	10 %
Operating Time (Response Time)	20 ms

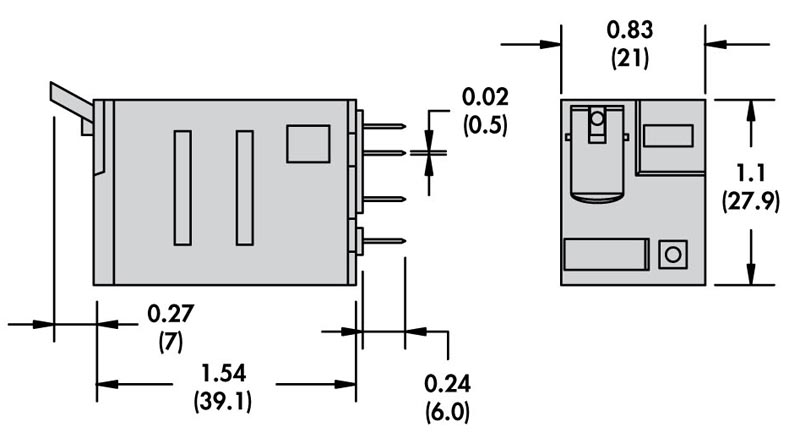

Case Code	782Xbxx
Contact Material	Silver Alloy

Terminal Style

Plug-in

Contact Configuration

DPDT

Thermal (Carrying) Current

10 A

Coil Resistance

180 Ω

Coil Voltage

24 VAC

Load Type

Standard

Maximum Switching Voltage

300 V

Operating Range - % of Nominal (AC)

85 to 110 %

Drop-out Voltage Threshold (AC)

15 %

Drop-out Voltage Threshold (DC)

10 %

Operating Time (Response Time)

20 ms

Case Code

782Xbxx

Contact Material

Silver Alloy
