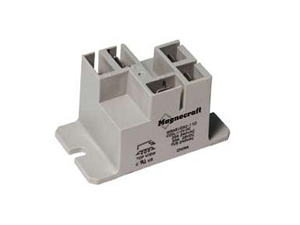

W9AS1D52-5 Specifications
| Contact Configuration | SPST-NO |
| Coil Resistance | 25 Ω |
| Maximum Switching Voltage | 300 V |
| Operating Range - % of Nominal (AC) | 85 to 120 % |
| Drop-out Voltage Threshold (AC) | 10 % |
| Drop-out Voltage Threshold (DC) | 10 % |
| Operating Time (Response Time) | 15 ms |

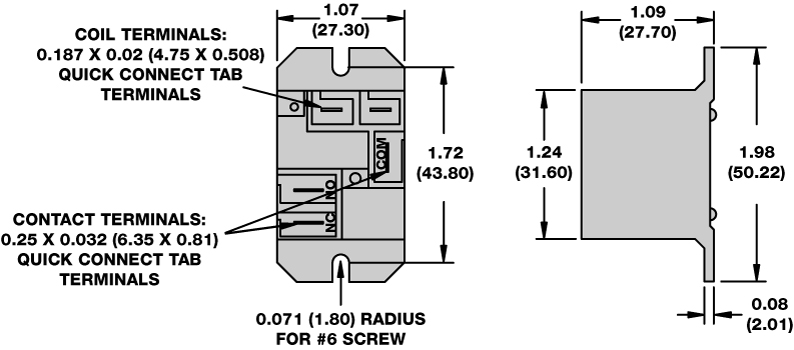

| Case Code | W9AS |
| Contact Material | Silver Alloy |
